QF-QTFB-750

Woven Bag Automatic Liner Insertion, Bottom Sealing, Cutting and Sewing Machine

Outer Cloth Width (mm)400-680

Outer Bag Cutting Length (mm)600-1200

Inner Bag Wider than Outer Bag (mm)+20

Inner Bag Thickness (mm)≥0.01

Cutting Accuracy (mm)±1.5

Bottom Folding Width (mm)15-30

Play Product Video

Woven Bag Automatic Liner Insertion, Bottom Edge-banding, Cutting and Sewing Machine

Product Introduction

High-efficiency automation for cutting, liner inserting, and bottom sewing - ideal for laminated and non-laminated woven bags, delivering up to 80% labor savings.

Product Parameters

Model No.	QF-QTFB-750
Outer Cloth Width (mm)	400-680
Outer Bag Cutting Length (mm)	600-1200
Inner Bag Wider than Outer Bag (mm)	+20
Inner Bag Thickness (mm)	≥0.01
Cutting Accuracy (mm)	±1.5
Bottom Folding Width (mm)	15-30
Production Capacity (pcs/min)	22-35
Cutting Type	Cold Cutting
Sewing Machine Type	Single Stitch (double stitch for options)
Stitch Pitch (mm)	7-12
Installing Dimensions (LxWxH) (mm)	6000x9500x1600
Weight (kg)	6000 approx.
Remarks	11kw air compressor prepared by the customer

Product Details

01.

Fully automated cutting, inner liner inserting, bottom sewing and edge-banding - processes laminated PP woven bags with 75-85% labor reduction versus manual operations.

02.

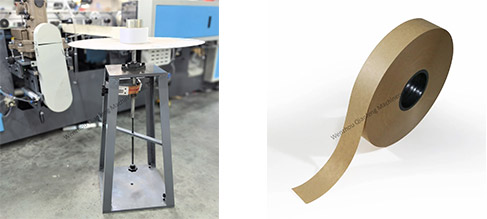

It enhances seam sealing by applying an adhesive tape (hot-melt or cold glue) over stitched seams, with optional heating for thermal-bonding tapes.

03.

Precision-length control: User-friendly touchscreen and servo motor system maintains ±1.5mm accuracy on every bag.

04.

Cold cutting provides clean, fray-resistant edges with no heat distortion, ensuring consistent performance.

05.

Automatic bottom sewing with dual-mode operation - choose to sew inner & outer bags together for sealed protection, or separately for replaceable liner flexibility.

06.

Dual independent deviation correction systems simultaneously maintain precision for both woven fabric and inner liner, ensuring accurate alignment, reducing material waste, and improving production efficiency.
