QF-QTF-750

Woven Bag Automatic Liner Insertion, Cutting and Sewing Machine

Outer Cloth Width (mm)400-680

Outer Bag Cutting Length (mm)600-1200

Inner Bag Wider than Outer Bag (mm)+20

Inner Bag Thickness (mm)≥0.01

Cutting Accuracy (mm)±1.5

Bottom Folding Width (mm)15-30

Play Product Video

Woven Bag Automatic Liner Insertion, Cutting and Sewing Machine

Product Introduction

High-efficiency automation for cutting, liner inserting, and bottom sewing - ideal for laminated and non-laminated woven bags, delivering up to 80% labor savings.

Product Parameters

Model No.	QF-QTF-750
Outer Cloth Width (mm)	400-680
Outer Bag Cutting Length (mm)	600-1200
Inner Bag Wider than Outer Bag (mm)	+20
Inner Bag Thickness (mm)	≥0.01
Cutting Accuracy (mm)	±1.5
Bottom Folding Width (mm)	15-30
Production Capacity (pcs/min)	22-35
Cutting Type	Hot cutting or cold cutting or both as required
Sewing Machine Type	Single Stitch (double stitch for option)
Stitch Pitch (mm)	7-12
Installing Dimensions (LxWxH) (mm)	6000x8000x1600
Weight (kg)	5000 approx.
Remarks	11kw air compressor prepared by the customer

Product Details

01.

Fully automated cutting, inner liner inserting and bottom sewing - processes laminated and non-laminated bags with 70-80% labor reduction versus manual operations.

02.

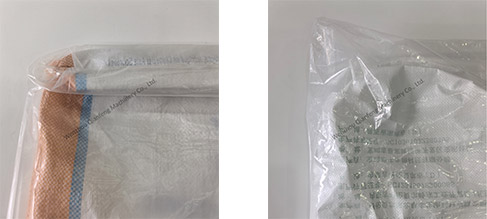

Automatic bottom sewing with dual-mode operation - choose to sew inner & outer bags together for sealed protection, or separately for replaceable liner flexibility.

03.

Dual independent deviation correction systems simultaneously maintain precision for both woven fabric and inner liner, ensuring accurate alignment, reducing material waste, and improving production efficiency.

04.

Precision-length control: User-friendly touchscreen and servo motor system maintains ±1.5mm accuracy on every bag.

05.

Switch seamlessly between cold-cutting (laminated bags) and hot-cutting (non-laminated) in under 1 minute.

06.

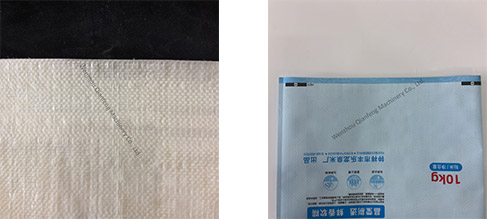

Hot cutting seals edges without adhesion for a smooth bag opening, while cold cutting provides clean, fray-resistant edges with no heat distortion, ensuring consistent performance in both modes.
