QF-QTFQ-750

Woven Bag Automatic Liner Insertion, Top Hemming, Cutting and Sewing Machine

Outer Cloth Width (mm)450-650

Outer Bag Cutting Length (mm)600-1200

Inner Bag Wider than Outer Bag (mm)+20

Inner Bag Thickness (mm)≥0.01

Cutting Accuracy (mm)±1.5

Bottom Folding Width (mm)15-30

Play Product Video

Product Introduction

Fully automated cutting, inner liner inserting, bottom sewing and top hemming - processes laminated and non-laminated bags with 75-85% labor reduction versus manual operations.

Product Parameters

Model No.	QF-QTFQ-750
Outer Cloth Width (mm)	450-650
Outer Bag Cutting Length (mm)	600-1200
Inner Bag Wider than Outer Bag (mm)	+20
Inner Bag Thickness (mm)	≥0.01
Cutting Accuracy (mm)	±1.5
Bottom Folding Width (mm)	15-30
Production Capacity (pcs/min)	15-20
Cutting Type	Hot Cutting and Cold Cutting together
Sewing Machine Type	Single Stitch (double stitch for option)
Stitch Pitch (mm)	7-12
Installing Dimensions (LxWxH) (mm)	6000x11500x1600
Weight (kg)	7000 approx.
Remarks	11kw air compressor prepared by the customer

Product Details

01.

Fully automated cutting, inner liner inserting, bottom sewing and top hemming - processes laminated and non-laminated bags with 75-85% labor reduction versus manual operations.

02.

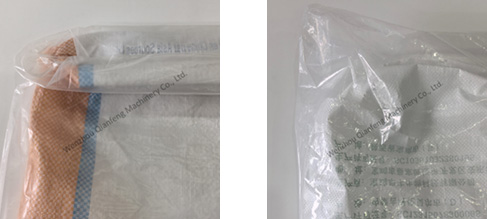

This machine integrates fully automatic ultrasonic hemming technology, automatically folds the woven bag opening inward while simultaneously performing ultrasonic welding of the inner film and outer woven bag layers.

03.

Precision-length control: User-friendly touchscreen and servo motor system maintains ±1.5mm accuracy on every bag.

04.

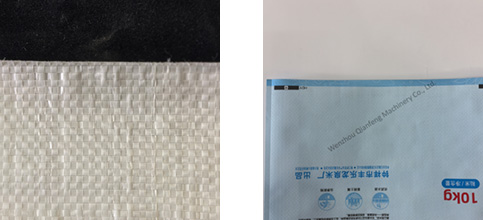

Switch seamlessly between cold-cutting (laminated bags) and hot-cutting (non-laminated) in under 1 minute.

05.

Hot-cutting seals edges without adhesion for smooth bag opening, while cold cutting delivers clean, fray-resistant edges with zero heat distortion - ensuring consistent performance in both modes.

06.

Automatic bottom sewing with dual-mode operation - choose to sew inner & outer bags together for sealed protection, or separately for replaceable liner flexibility.

07.

Dual independent deviation correction systems simultaneously maintain precision for both woven fabric and inner liner, ensuring accurate alignment, reducing material waste, and improving production efficiency.
