Product Introduction

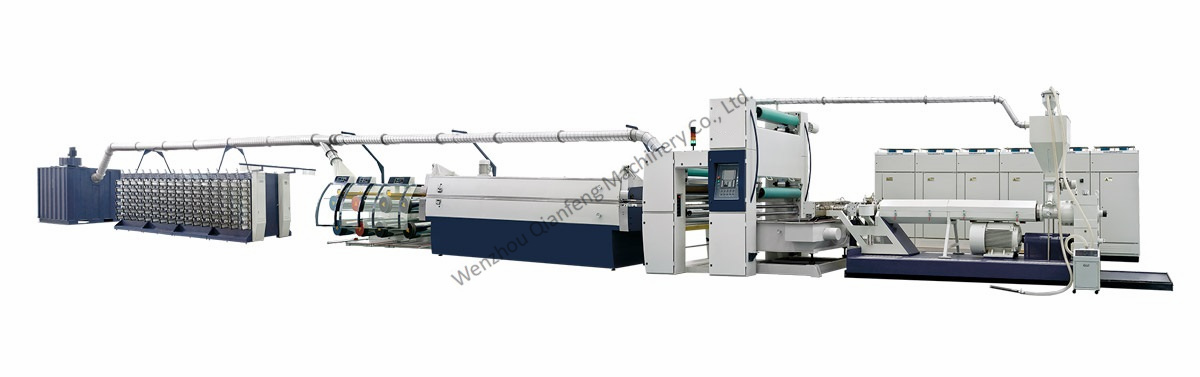

This machine uses PP or HDPE as raw material and produces flat yarn through processes of heating, extruding, stretching, and winding. The final yarn is suitable for use on circular looms for woven bag production.

Product Parameters

Model No.	G-80/800/132	G-110/1100/180	G-120/1300/216	G-130/1500/252
Max. Extrusion Output	150 kg/h	300 kg/h	400 kg/h	500 kg/h
Screw Diameter	80 mm	110 mm	120 mm	130 mm
Screw Speed	20-90 r/min	20-90 r/min	20-90 r/min	20-90 r/min
Die Head Width	800 mm	1100 mm	1300 mm	1500 mm
Max. Linear Speed	450 m/min	450 m/min	450 m/min	450 m/min
Flat Yarn Denier Scope	540-1170 denier	540-1170 denier	540-1170 denier	540-1170 denier
Drawing Ratio	4-10	4-10	4-10	4-10
Number of Spindles	132	180	216	252
Dimension of Bobbin (DxL)	38x230 mm	38x230 mm	38x230 mm	38x230 mm
Installed Power (kw)	200 kw	300 kw	350 kw	400 kw
Actual Power Consumption	100 kw	150 kw	175 kw	200 kw
Installing Dimensions (LxWxH)	32000x5800x3500 mm	34000x5800x3500 mm	36000x5800x3500 mm	38000x5800x3500 mm
Weight	27000 kg	29000 kg	31000 kg	33000 kg

The number of spindles can be collocated according to the customers’ requirements.

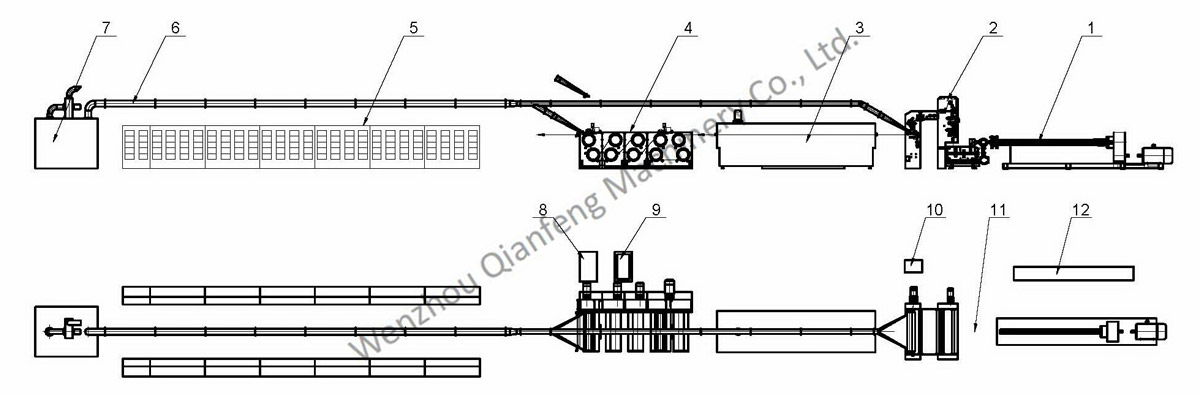

Machine Diagram

1.Extruder	7. Waste Yarn Box
2.Gantry Frame	8. Industrial Chiller
3. Hot Air Oven	9. Oil Heating
4. Stretching and Annealing Unit	10. Side Yarn Crushing Unit
5. Winder	11. Side Yarn Recycling Unit
6. Waste Yarn Collection Unit	12. Power Distribution Cabinet

Product Details

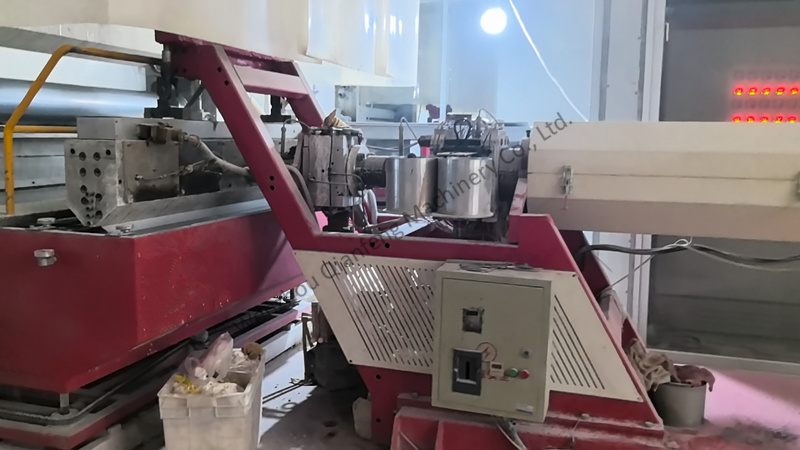

This machine is specially designed for the efficient production of plastic woven bags, jumbo bags, tarpaulins, and similar products, meeting domestic and international demand for large-scale production of high-quality woven materials.

Using PP or HDPE as the main raw material, it produces high-strength flat yarn through processes of heating, extrusion, stretching, annealing, and winding.

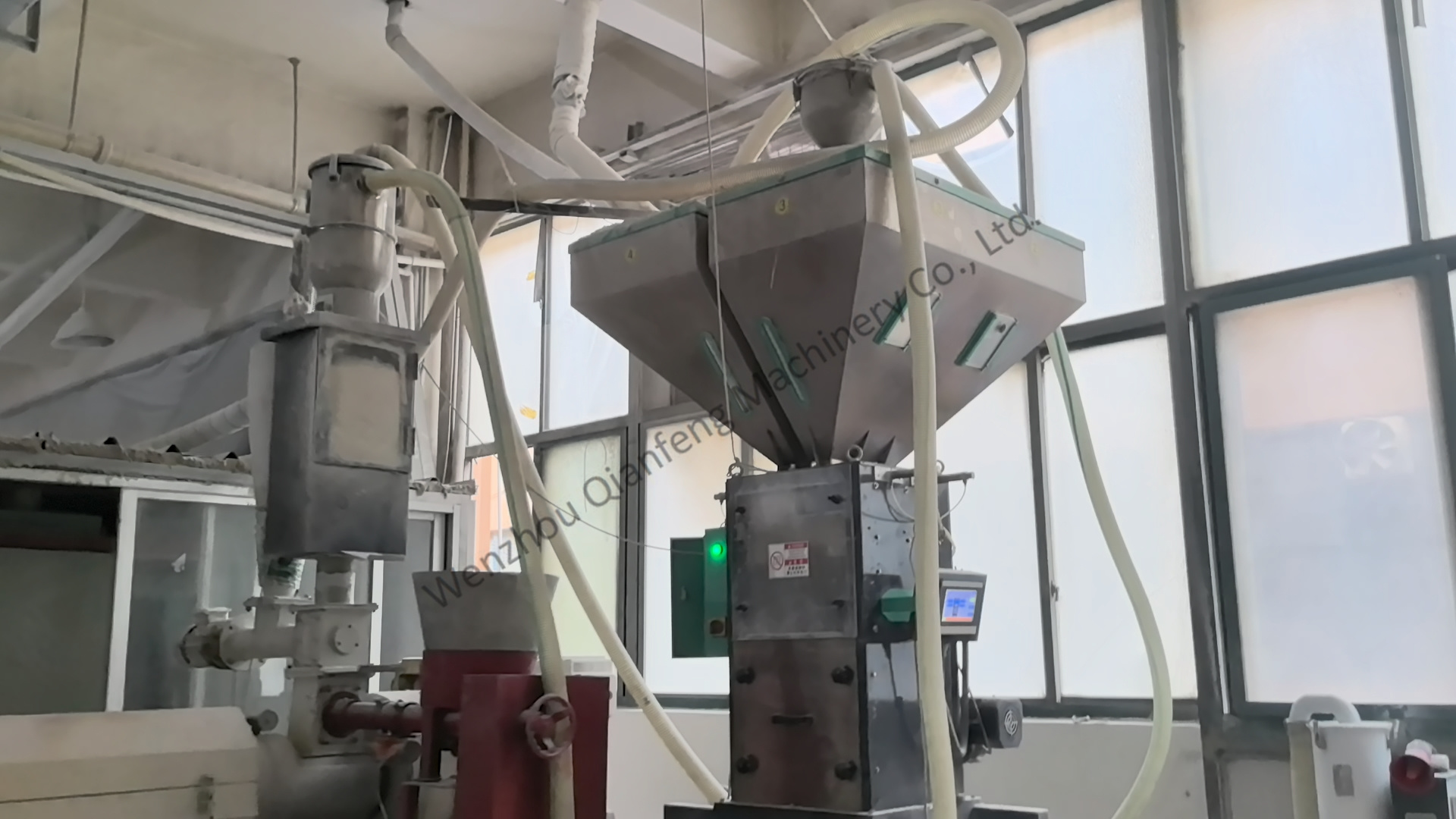

The unique automatic belt-type screen changer is suitable for PP virgin granule production and allows the addition of a proper amount of masterbatch, ensuring continuous filtration and stable operation.

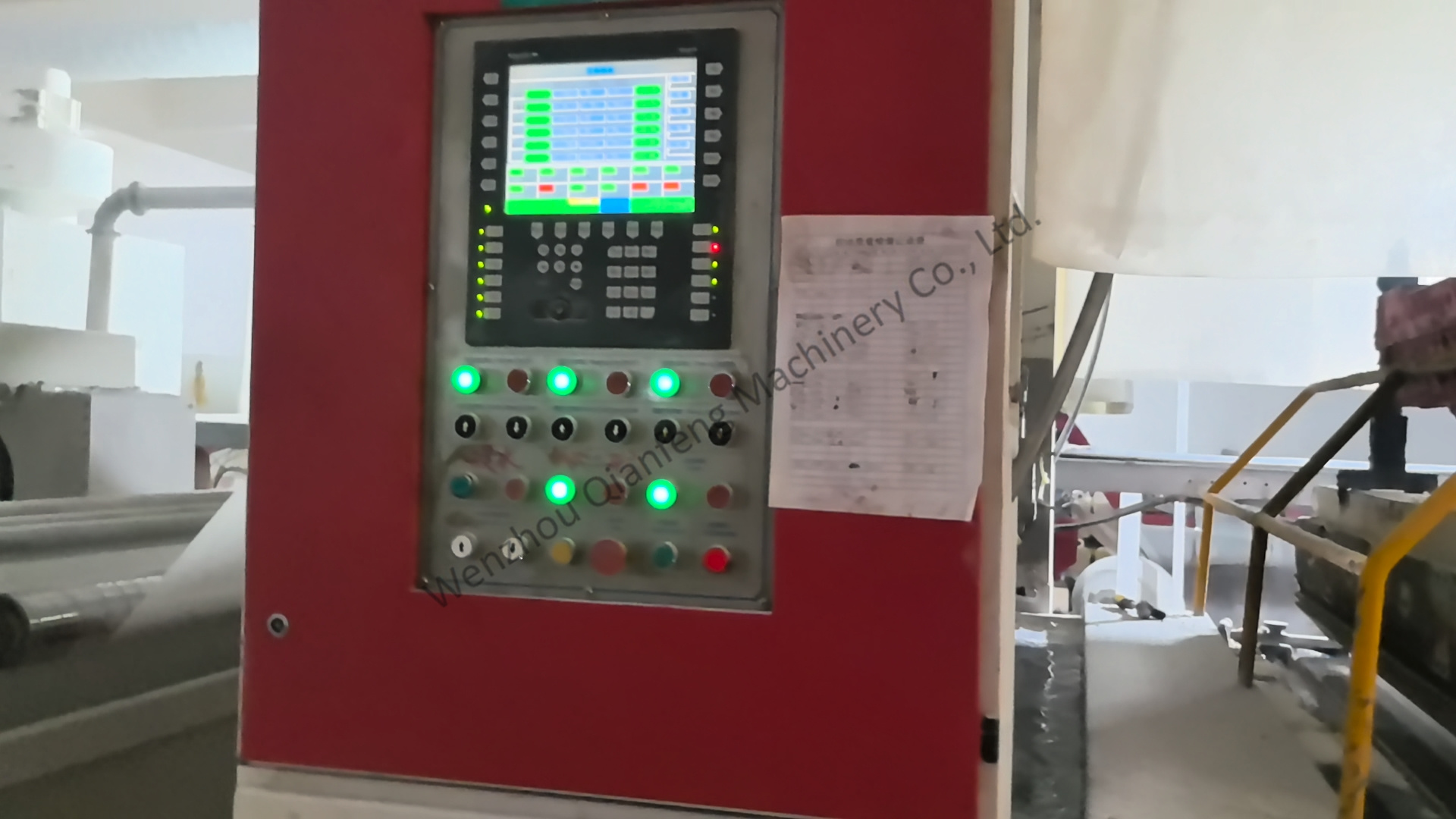

The equipment adopts a PLC industrial computer as the core control system, combined with advanced frequency conversion technology, to achieve independent fine-tuning, unified operation, and synchronized speed adjustment across the entire production line.

This model integrates intelligent, automated, and user-friendly design, offering easy operation and stable performance, making it an ideal choice for modern flat tape production.
