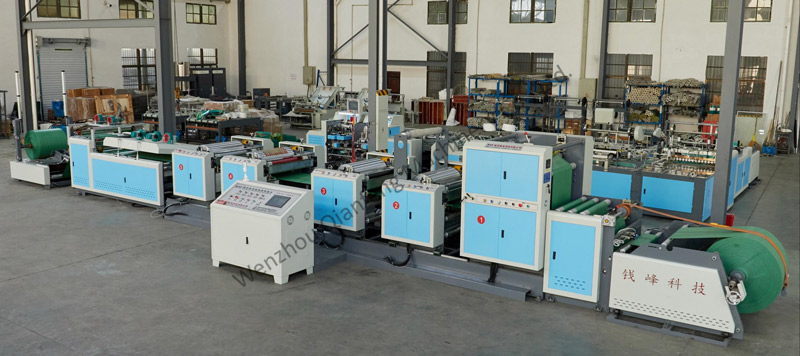

What is a Cylinder-Free Intelligent Printing Machine for PP Woven Bags?

Traditional PP woven bag printing machines require changing printing cylinders and mechanical gears to adjust the printing length. This leads to long downtime, high tooling costs, and limited production flexibility.

Our intelligent cylinder-free printing machine achieves adjustable printing length through a virtual master axis and electronic gear ratio, without the need to change cylinders or gears. This significantly improves production efficiency, printing accuracy, and allows rapid switching between different bag lengths.

How It Works

Virtual Master Axis & Electronic Gear Ratio

The motion controller establishes a virtual master axis as a reference.
The electronic gear ratio defines the proportional relationship between the printing roller and the fabric feeding (traction) roller.
As the virtual axis “moves,” the controller calculates the speed of each axis for precise coordination.
The system simulates mechanical gear ratios digitally, eliminating the need for physical gear changes.

Printing Roller

Runs at constant speed to ensure smooth and continuous printing.
Independent of bag length, ensuring consistent print quality.
Servo control maintains high stability, reducing vibration and registration errors.

Fabric Feeding (Traction) Roller

Automatically generates speed curves based on bag length and plate layout.
Can operate in constant speed (standard production) or variable speed (non-standard sizes, complex layouts, or high-precision length control).
Speed profiles are calculated via the virtual axis and electronic gear ratio, ensuring accurate printing length for each bag and reducing material waste.

Adjustable Printing Length

Operators enter the desired bag length or printing length via HMI / touch screen.
The system automatically generates the required speed profile for the feeding roller.
No cylinder or gear changes are required, allowing rapid switching between bag sizes.

Digital Advantages

The system calculates precise movement for each axis based on real-time parameters.
Automatically compensates for minor variations in material or thickness.
Suitable for short, medium, and long bags without manual mechanical intervention.

Core Logic: Printing length is digitally controlled through coordination of the printing roller and feeding roller via the virtual master axis and electronic gear ratio, rather than relying on the physical circumference of the printing cylinder.

Key Advantages

No Cylinder or Gear Replacement

Eliminates downtime and tooling costs.

Flexible Production

One machine can efficiently produce multiple bag lengths.

Rapid Changeover

Adjust parameters on the touch screen to quickly switch production.

High Accuracy & Stability

Virtual axis + electronic gear ratio ensures smooth coordination between printing and feeding rollers.

Reduced Waste & Higher Efficiency

Digital control ensures precise printing length, minimizing material waste.
Reduces operator intervention, improving overall production efficiency.

Suitable Applications

PP woven bag factories producing multiple bag lengths.

Manufacturers of fertilizer, rice, flour, sugar, feed, and other bulk bags.
Plants upgrading from traditional stack-type printing machines.
Companies aiming to reduce setup time, tooling cost, and improve production efficiency.

Frequently Asked Questions (FAQ)

Q1: Can this machine print bags of different lengths without changing cylinders?

Yes. The machine uses a virtual master axis and electronic gear ratio to coordinate printing and feeding rollers digitally. Operators can adjust bag length via the touch screen, with no need to replace cylinders or gears.

Q2: How accurate is the printing length?

The system calculates the speed profile of the feeding roller in real-time using the virtual axis and electronic gear ratio, achieving highly precise and consistent printing length for each bag. Minor variations in material or thickness are automatically compensated.

Q3: Can the feeding roller operate at variable speeds?

Yes. Depending on bag size and plate layout, the feeding roller can operate in constant speed or variable speed mode to ensure precise printing and reduce material waste.

Q4: How fast can I switch between different bag lengths?

Switching is extremely fast. Operators only need to input the new bag length or printing length on the HMI/touch screen. The system automatically recalculates the speed profile; no mechanical adjustments are needed.

Q5: Is this machine suitable for high-speed production?

Yes. The printing roller runs at a constant speed with servo control for stability, while the feeding roller follows the calculated profile for each bag. This ensures smooth operation even at high speeds.

Q6: Can this machine reduce material waste?

Absolutely. Precise digital control of printing length minimizes overprint or underprint, reducing wasted material and improving overall production efficiency.
