QF-DBQY-2200

Intelligent Jumbo Bag Cutting Printing One Line Machine

Max. Diameter of Unwinding Roll (mm)1250

Max. Cutting Width (mm)2200

Max. Cutting Length (mm)1500

Cutting Accuracy (mm)±5

Production Capacity (pcs/min)15-25

Printing Colors3

Play Product Video

FIBC Intelligent Cutting and Printing Machine

Product Introduction

This machine is suitable for processing jumbo bags of various specifications, solving issues such as high labor demand, intensive workload, and irregular finished products in FIBC production.

Product Parameters

Model No.	QF-DBQY-2200
Max. Diameter of Unwinding Roll (mm)	1250
Max. Cutting Width (mm)	2200
Max. Cutting Length (mm)	1500
Cutting Accuracy (mm)	±5
Production Capacity (pcs/min)	15-25
Printing Colors	3
Rubber Plate Thickness (mm)	4-5
Air Pressure (Mpa)	0.5
Gross Power (kw)	25
Operating Power (kw)	10
Cutting Type	Heat cutting
Installing Dimensions (LxWxH) (mm)	16000x5500x1800
Weight (kg)	8200 approx.
Remarks	Circular cutting, cross cutting, ultrasonic edge sealing and full-loop lifting belt marking for options.

Product Details

01.

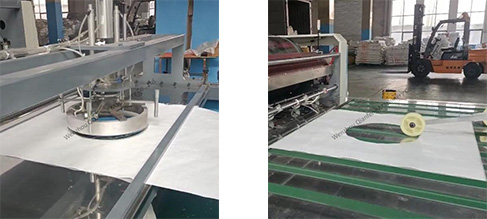

The machine can automatically complete cutting, printing, automatic counting and stacking, allowing one-person operation, reducing labor costs, and improving product quality.
