DF-1000/6 DF-1000/4

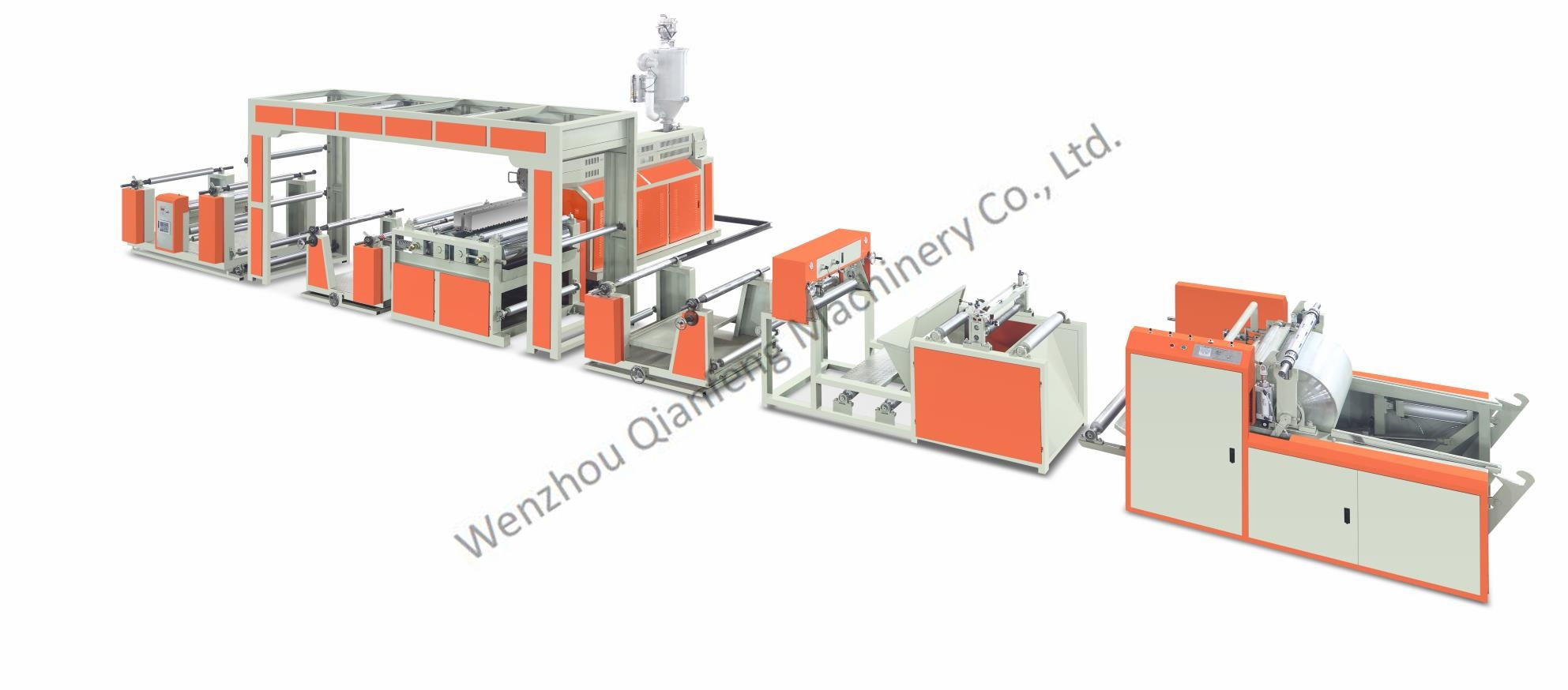

PP Woven Bag Lamination Machine

L/D Ratio of Screw30:1

Number of Die2

Width of Die1100 mm

Main Motor Power18.5 kw

Gross Power85 kw

Coating / Laminating Width200-800 mm

Product Parameters

Model No.	DF-1000/4	DF-1000/6
L/D Ratio of Screw	28:1	30:1
Number of Die	2	2
Width of Die	1000 mm	1100 mm
Main Motor Power	18.5 kw	18.5 kw
Gross Power	85 kw	85 kw
Coating / Laminating Width	200-800 mm	200-800 mm
Coating / Laminating Speed	30-220 m/min	30-220 m/min
Installing Dimensions (LxWxH)	18000x8000x3500 mm	18000x8000x3500 mm
Weight	8000 kg	9000 kg

Product Details

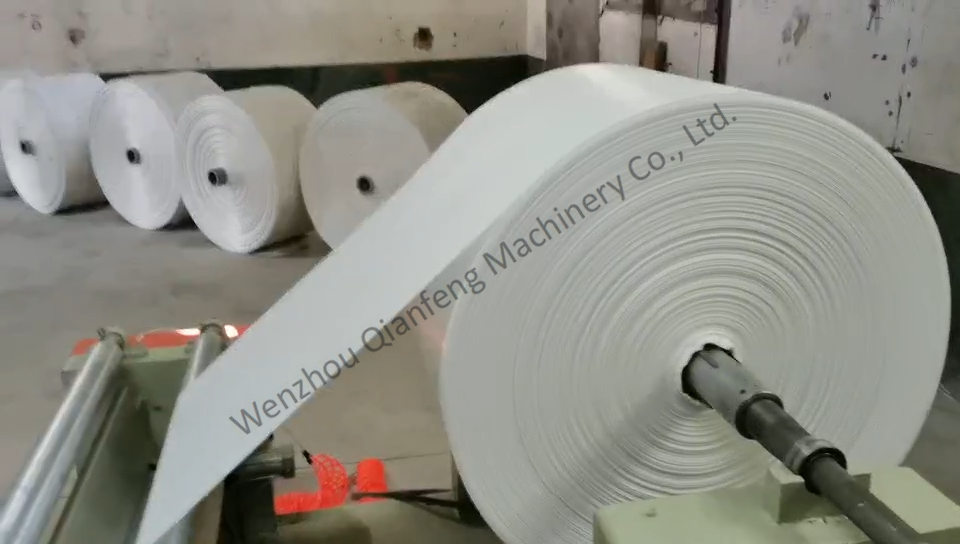

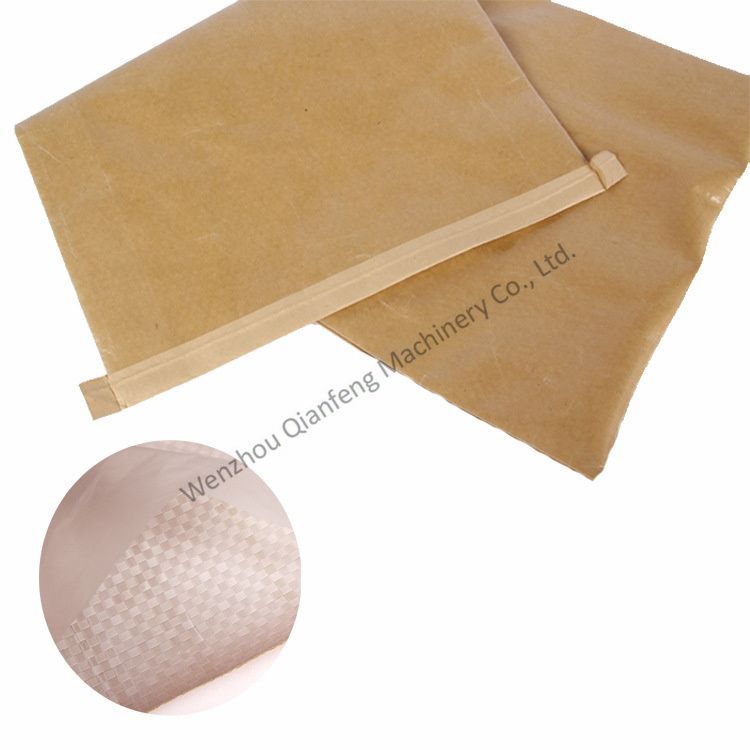

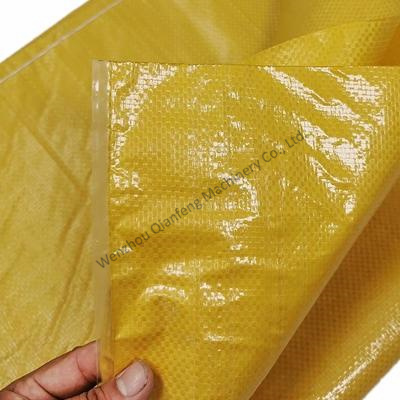

Suitable for PP/PE woven fabric as base material; supports extrusion coating, paper-plastic lamination, and pre-printed BOPP/OPP/CPP film lamination for composite packaging production.

Advanced technology with a high degree of automation, energy-saving operation, user-friendly interface, and integrated automatic web guiding system.

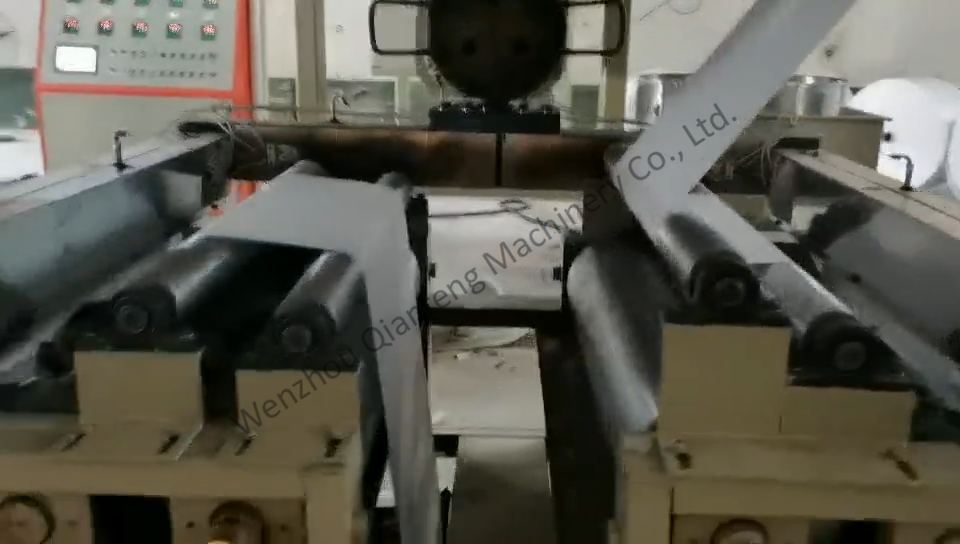

Features twin die heads and dual pressure rollers to ensure uniform lamination, strong peel strength, smooth finish, and excellent mechanical properties.
