Product Introduction

This machine uses PP, HDPE, or 100% recycled materials as raw materials and produces flat tape through processes of heating, extruding, stretching, and winding. The final flat tape is suitable for use on circular looms for woven bag production.

Product Parameters

Model No.	FS115/800B	FS120/1000B	FS120/1200B	FS135/1600B	FS140/1800B	FS145/2000B
Screw Diameter	115 mm	120 mm	120 mm	140 mm	140 mm	145 mm
Screw Speed	25-75 r/min	23-70 r/min	23-70 r/min	22-65 r/min	22-65 r/min	20-60 r/min
Die Head Width	800 mm	1000 mm	1200 mm	1600 mm	1800 mm	2000 mm
Extruder Motor Power	30 kw	30 kw	30 kw	37 kw	37 kw	45 kw
Extruder Heating Power	36 kw	43 kw	47 kw	77 kw	80 kw	86 kw
Traction Motor Power	7.5 kw	7.5 kw	7.5 kw	7.5 kw	11 kw	11 kw
Heating Plate Power	15 kw	20 kw	24 kw	30 kw	30 kw	30 kw
Drawing Ratio	4-8	4-8	4-8	4-8	4-8	4-8
Production Capacity	50-100 kg/h	60-120 kg/h	70-140 kg/h	90-180 kg/h	100-200 kg/h	110-240 kg/h
Linear Speed	50-150 m/min	50-150 m/min	50-150 m/min	50-150 m/min	50-150 m/min	50-150 m/min
Installing Dimensions (LxWxH)	13300x1500x1300 mm	14700x1750x1300 mm	16500x2050x1300 mm	20000x2600x2200 mm	20000x2950x2200 mm	21000x3400x2200 mm
Weight	6500 kg	8000 kg	10000 kg	16000 kg	17000 kg	20000 kg

Specifications and appearance are subject to change without prior notice.

Product Details

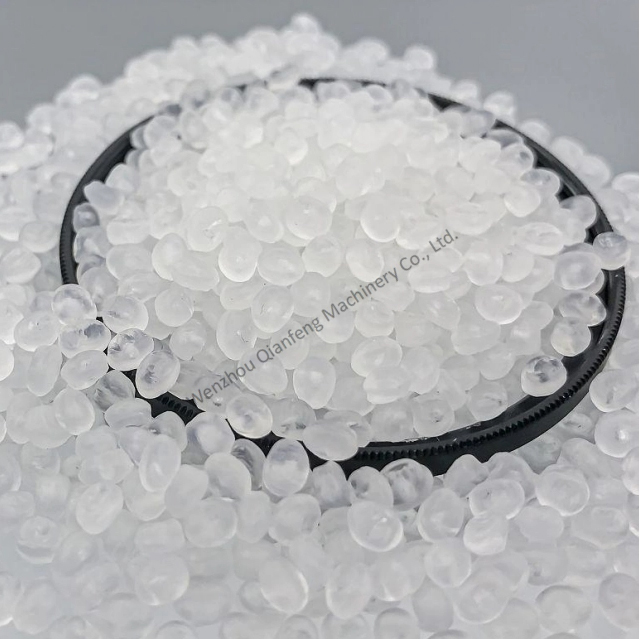

1.The machine uses polypropylene (PP) and high-density polyethylene (HDPE) as raw materials and produces plastic flat tape through heating, extrusion, stretching, and winding processes, which is supplied to circular looms for fabric weaving.

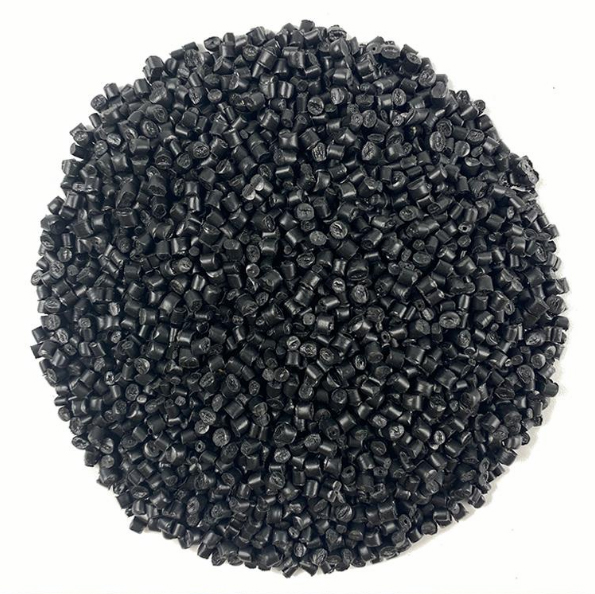

2.After multiple upgrades and improvements, this machine can produce flat tape using 100% recycled materials (powder or granules), meeting environmental protection and energy-saving requirements.

3.The extruder screw and barrel are made of 38CrMoAlA alloy steel, nitrided to achieve a hardness above HV950, ensuring wear resistance and durability.

Qianfeng Latest News & Events

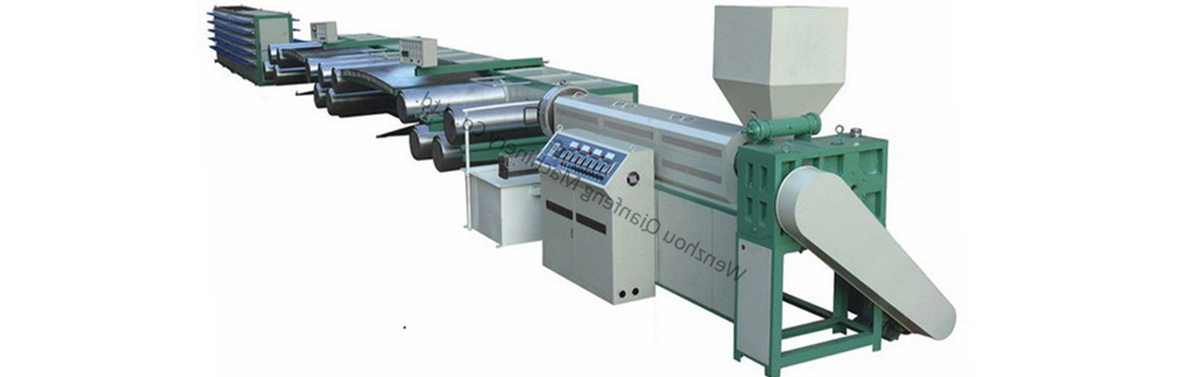

Energy-Efficient Eco-Friendly Flat Tape Extrusion Line
